Atomos Shinobi 5" 4K HDMI HDR Photo & Video Monitor

347€


Product Code: 13247

Highlights
  • 1920 x 1080 Touchscreen Display
  • 10-Bit Exterior Viewable Monitor
  • 4K HDMI Input
  • 1000 cd/m² Brightness
Available (1-2 months)
1 Year Warranty
The product has been successfully added to the shopping cart

Accessories for Atomos Shinobi 5" 4K HDMI HDR Photo & Video Monitor

    29€
      18€
        42€
          35€
            50€
              21€
                75€
                  109€
                    129€
                      85€
                        59€
                          58€
                            27€
                              27€
                                27€
                                  27€

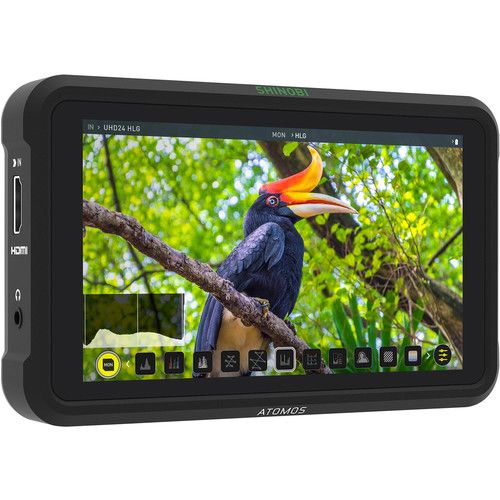

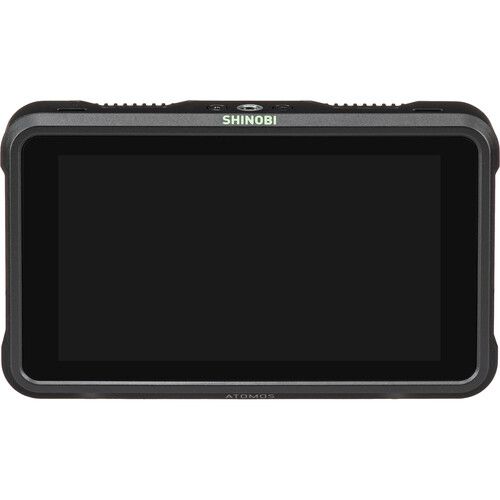

                                  The Shinobi 5" 4K HDMI Monitor is an on-camera monitor with DCI 4K, UHD 4K, and HD video input. It features a 10-bit FRC IPS screen with a brightness of 1000 cd/m², which makes it suitable for use in both exterior and interior conditions. The AtomHDR display technology allows you to accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor supports popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras.

                                  Built to withstand the rigors of production, the Shinobi features a lightweight plastic chassis and powers from a single L-series battery. Additional features include a variety of onscreen exposure analysis, framing, and focus assist tools, as well as anamorphic de-squeeze. A 12V power supply with L-series battery eliminator is included with the unit.

                                  AtomHDR

                                  With AtomHDR you can monitor up to ten stops of dynamic range of your camera's LOG image. Most conventional monitors can only display six or seven stops, which is fine for standard footage; but a Log image will look overly flat. It is also superior to monitoring with a loaded LUT, which can clip the highlights and mask shadows.

                                  Supported Log Formats

                                  • ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 /LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /LogCEI1000 / LogCEI1280 / LogCEI1600
                                  • Canon CLog / CLog 2 / CLog 3
                                  • Fuji F-Log
                                  • JVC JLog
                                  • Nikon N-Log
                                  • Sony SLog / SLog2 / SLog3
                                  • Panasonic Vlog
                                  • RED Log3G10 / RED LogFilm
                                  • PQ10k
                                  • HLG

                                  HDR Monitoring

                                  • Sony SGamut / SGamut3 / SGamut3.cine
                                  • Canon Cinema / DCI P3 / DCI P3+
                                  • Panasonic V Gamut
                                  • Arri Alexa Wide Gamut
                                  • Rec709 / BT.2020
                                  • JVC
                                  • RED WideGamut / RED DragonColor / DragonColor2
                                  • RED Color2 / RED Color3 / RED Color4

                                  4K DCI/UHD and HD Capabilities

                                  Monitor 4K footage in DCI or UHD formats up to 29.97 fps and 1080p up to 59.94 fps.

                                  Audio Monitoring

                                  Input/output audio via HDMI and output audio using the 3.5mm headphone port for convenient audio monitoring.

                                  5" Daylight Viewable Screen

                                  The Shinobi features a 5" IPS LCD screen that is illuminated by a bright 1000 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color calibrated from the factory to ensure accurate image representation.

                                  HDR Signal Management

                                  Log and HDR signals can be difficult to monitor with conventional equipment. Though, with the Shinobi's built-in HDR signal management functions, the log signal can be converted to the PQ standard for compatibility with existing consumer and professional HDR equipment.

                                  Anamorphic De-Squeeze

                                  The Shinobi supports Anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with a squeeze of 2x, 1.5x, 1.33, and Panasonic's 8:3.
                                  Panel Type IPS-Type LCD
                                  Display Size 5.2" / 13.2 cm
                                  Resolution 1920 x 1080
                                  Aspect Ratio 16:09
                                  Touchscreen Yes
                                  Maximum Brightness 1000 cd/m2
                                  Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
                                  Pixels Per Inch (ppi) 427 ppi
                                  Color Gamut 100% Rec. 709
                                  Real-Time LUT Monitoring SDR
                                  Image Controls Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
                                  I/O

                                  Video 1 x HDMI Type A (HDMI 1.4) Input
                                  Embedded Audio HDMI: 2-Channel
                                  Audio 1 x 1/8" / 3.5 mm Headphone Output
                                  Built-In Speaker None
                                  Other I/O None
                                  Wi-Fi None
                                  Format Support

                                  Video Format HDMI (8/10-Bit 4:2:2)
                                  DCI 4K: 29.97/25/24/23.98
                                  UHD 4K: 29.97/25/24/23.98
                                  1080p: 59.94/50/29.97/25/24/23.98
                                  720p: 59.94/50
                                  Gamma Curve ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, HDR-HLG, HDR-PQ, JVC J-Log, Panasonic V-Log, REDlogFilm, Rec2020, Rec709, Sony S-Log 2, Sony S-Log 3
                                  Power

                                  DC Input Power 6.2 to 16.8 VDC
                                  Battery Type 1 x L-Series
                                  Power Consumption 4 W (Typical)
                                  7 W (Maximum)
                                  Mounting

                                  Mounting 2 x 1/4"-20 Female
                                  Environmental

                                  Operating Temperature 104°F / 40°C (Recommended)
                                  Material of Construction Polycarbonate
                                  Dimensions 151 x 91.5 x 31.5 mm
                                  Weight  196 g
